GEN2+ Night Vision Intensifier Tube: Optimized for PVS14 PVS31 PVS7 BNVD 1431
$1,999.00
Experience superior night vision with the Gen2+ image intensifier tube, featuring a cutting-edge proximity-focused electronic optical system and an S25+ photo cathode. Benefit from extended red light response and a magnification ratio of 1, ensuring optimal clarity in low-light conditions. This product excels with functions like strong light source protection and polarity reversal protection. Enjoy the advantages of a compact size, lightweight build, and low power consumption. Elevate your optics with advanced technology for enhanced performance in any environment

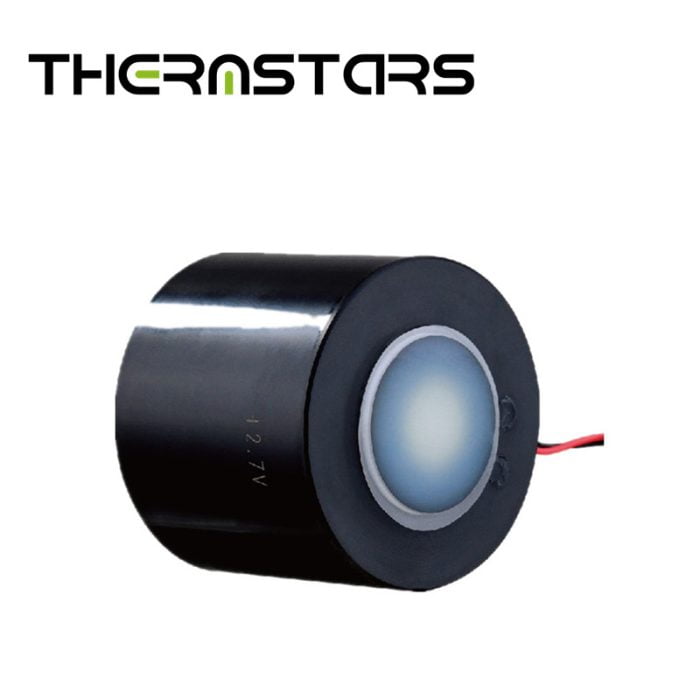

Gen2+ Image Intenfier Tube For PVS14 PVS31 PVS7 BNVD 1431
| Parameter | Class C | Class B | Class A | Unit |
| Figure Of Merit | 1400 | 1600 | 1800 | |
| Sensitivity (2856K) | 700 | 800 | 1000 | μA/lm |
| SNR | 23 | 25 | 28 | |
| Resolution | 60 | 64 | 64 | lp/mm |
| High light resolution (200lx) | – | 54 | 54 | lp/mm |
| Operating voltage | 2.2-3.4 | 2.2-3.4 | 2.2-3.4 | V |
| Operating current | ≤25 | ≤35 | ≤35 | mA |
| Luminance gain | 8000-12000 | 8000-12000 | 10000-20000 | cd/m 2 /lx |
| Maximum output brightness | 4~8 | 4~8 | 4~10 | cd/m 2 |
| Working illumination range | / | 1×10 -6 ~5×10 4 | 1×10 -6 ~5×10 | lx |
| Uniformity of luminance(2856K) | 3:1 | 3:1 | 3:1 | |
| Cathode effective diameter | 17.5 | 17.5 | 17.5 | mm |
| Power supply | Normal | Auto-gating | Auto-gating | |
| Phosphor powder | P43/P45 | P43/P45 | P43/P45 | |
| Weight | ≤80 | ≤80 | ≤80 | g |
| Power consumption | 33-51 | 55-85 | 55-85 | mW |
